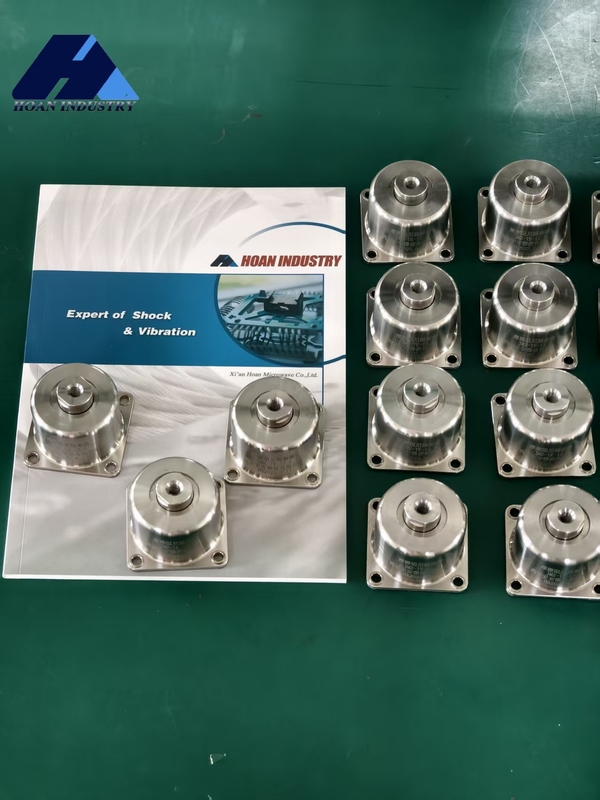

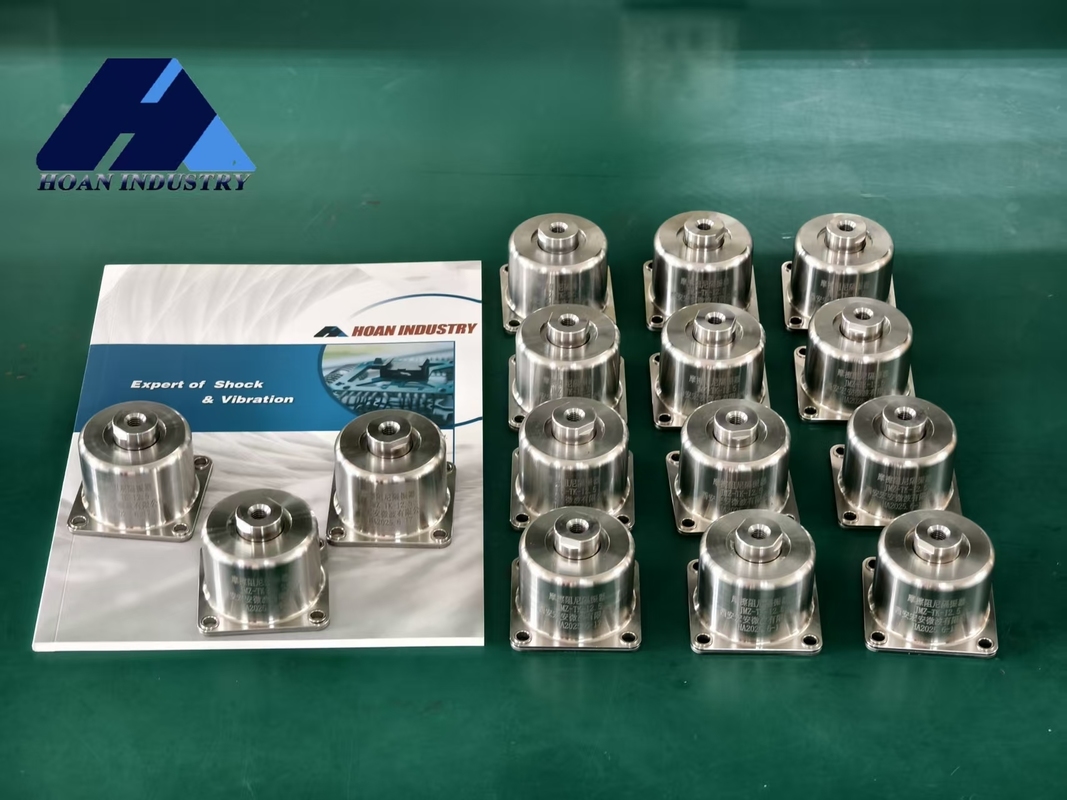

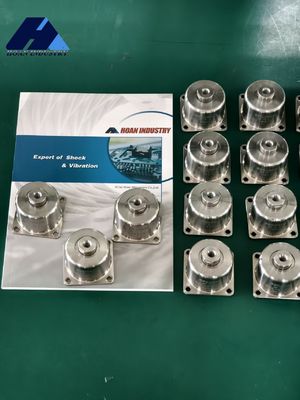

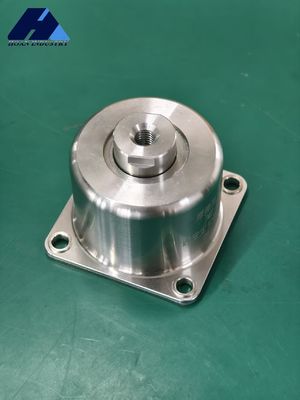

Name: JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-7A
Availability: InStock

Do domu > produkty > Izolacja sprężynowa >

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Corrosion Resistant Friction Damping Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

Hoan

Numer modelu:

JMZ-TK-7A

Skontaktuj się z nami

Poproś o wycenę

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Szczegóły produktu

Odporność na korozję:

Tak

Styl projektowania:

Przemysłowy

Aplikacja:

Izolacja wibracji

Obowiązujące branże:

Energia i wydobycie

Słowa kluczowe produktu:

Izolatory tłumiące tarcie

Port:

Xi'an lub określony

Temperatura robocza:

-40 ° F do 200 ° F.

Dostosowywanie:

Dostępne na żądanie

Absorpcja wstrząsu:

Wysoki

Wydajność izolacji:

Do 95%

Pojemność obciążenia produktu:

Dostosowywanie

Budowa:

Pleciona lina druciana

Struktura:

Śrubowaty

Podkreślić:

Corrosion Resistant Friction Damping Isolator

Up to 95% Isolation Efficiency Spring Isolator

Operating Temperature -40°F to 200°F Vibration Isolator

Warunki płatności i wysyłki

Minimalne zamówienie

Zasady płatności

L/C, D/A, D/P, Western Union, T/T, Moneygram

ZAŁĄCZONE PRODUKTY

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Najlepszą cenę

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Najlepszą cenę

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Najlepszą cenę

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Najlepszą cenę

Skontaktuj się z nami

86-29-88292913

Skontaktuj się teraz

Opis produktu

JMZ-TK-7A Friction Damping Isolators

Ensuring Material-Level Reliability in Real-World Conditions

JMZ-TK Vibration Isolators

The invisible contributor to enhancing industrial equipment precision and service life. In modern manufacturing, processing precision, production efficiency, and equipment service life are core indicators of competitiveness. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan effectively address vibration-related challenges that impact equipment performance.

Core Benefits

Enhanced Processing and Measurement Precision: Quickly dampens internal vibrations from spindle rotation and feed system movement, as well as external vibrations transmitted through the foundation.
Extended Equipment Service Life: Reduces dynamic load on components by isolating and weakening vibration energy at the source, significantly extending precision retention period.

Applications

Ideal for high-precision CNC machine tools, coordinate measuring machines (CMMs), lithography machines, and other equipment requiring vibration isolation.

Installation

Simple installation between equipment and foundation with compact design that maintains original equipment layout.

Structural Dimension Diagram

Installation Dimensions (mm)

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100g	10
JMZ-TK-4A	40	30～50	33	42	4	3	100g	10
JMZ-TK-5A	50	40～60

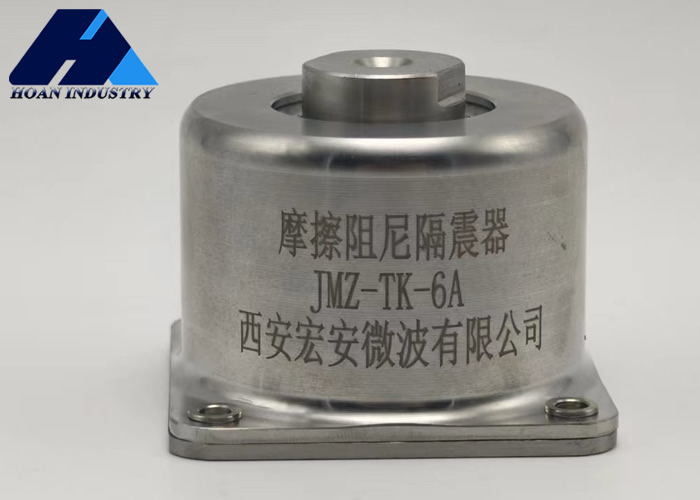

JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80

Investing in JMZ-TK vibration isolators yields significant long-term returns by improving product yield, reducing waste, lowering maintenance frequency, and extending equipment lifecycle.
