JGX-1276D-278B Maintenance-Free Long Life Wire Rope Vibration Isolator for Heavy-Duty All-Direction Shock Control

JGX-1276D-278B Wire Rope Vibration Isolator — Zero-Maintenance Shock Protection for Critical Equipment

Why Choose All-Metal Isolation Technology?

Conventional rubber and elastomeric vibration mounts have a fundamental weakness: they age. Over months and years, exposure to heat, ozone, UV light, oils, and repeated loading cycles causes them to harden, crack, creep, or permanently deform. The JGX-1276D-278B eliminates all of these failure modes through its 100% metal construction, delivering maintenance-free, long-lifespan vibration control across decades of continuous operation. No scheduled replacement intervals. No performance drift. No hidden degradation.

Maintenance-Free Architecture

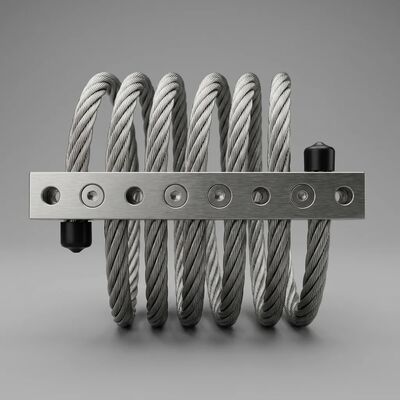

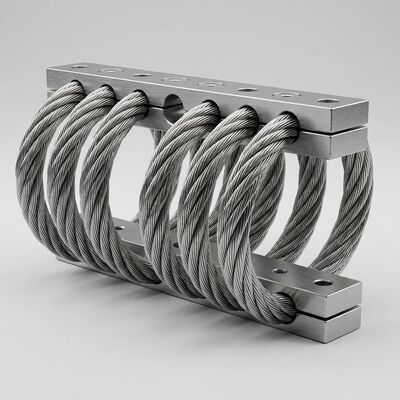

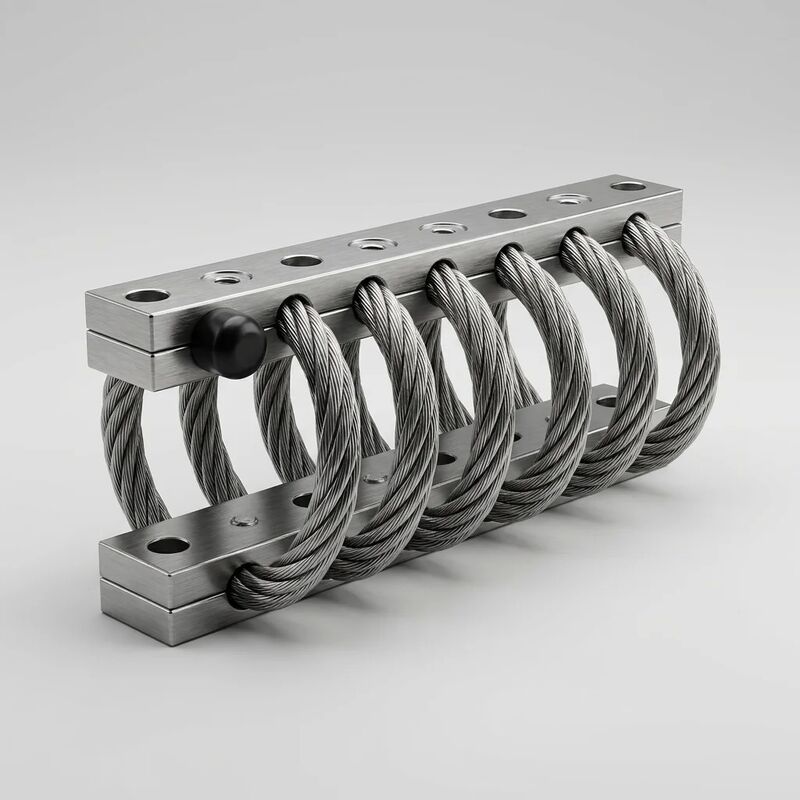

At the core of the JGX-1276D-278B is an 8-loop helix formed from 6.4 mm diameter 7×19 strand SS304 stainless steel wire rope. This multi-strand architecture is the key to its self-sustaining damping mechanism. As vibration energy enters the mount, the individual wires within each strand undergo micro-scale sliding motion against adjacent wires. This Coulomb friction damping converts mechanical energy directly into heat—without any fluids, without any wearing surfaces that require replenishment, and without any auxiliary components that can fail. The entire damping system is inherent to the wire rope itself.

All-Direction Shock Absorption Performance

The helical wire rope geometry enables the JGX-1276D-278B to absorb and dissipate shock energy arriving from any direction. Whether your equipment experiences vertical drop-induced transients, lateral impact from vehicle maneuvers, or torsional oscillation from rotating machinery, the isolator responds with a progressive, non-bottoming force-deflection characteristic. Under a 2–55 kg static load per mount, the natural frequency settles between 5–8 Hz, with dry friction providing a damping ratio of 0.10–0.20 that limits resonance amplification to below 3.0 times the input amplitude—effectively preventing the destructive magnification that occurs with undamped or lightly damped spring systems.

Heavy-Duty Construction for Demanding Environments

Every component of the JGX-1276D-278B is selected and treated for extreme durability:

• Wire Rope: SS304 stainless steel, 7×19 right regular lay, post-forming electropolished to Ra ≤ 0.4 μm. This surface finish minimizes corrosion initiation sites and ensures consistent inter-strand friction characteristics across the full service life.
• Clamping Bars: 6061-T6 aluminum alloy, hard anodized per MIL-A-8625 Type III equivalent, providing a durable, electrically non-conductive surface layer that prevents galvanic corrosion between the aluminum bar and stainless steel rope in humid or salt-laden atmospheres.
• Mounting Interface: Precision-reamed Ø8.5 mm through-holes on both bars accept standard M8 fasteners. The symmetrical bar design allows installation in any orientation—horizontal, vertical, or angled—without affecting isolation performance.

Environmental Resilience Data

Installation & Integration Guidelines

Mounting Orientation: The JGX-1276D-278B performs equally in compression, shear, or 45° canted configurations. For payloads primarily subjected to vertical excitation, vertical mounting (compression mode) optimizes load capacity. For applications with significant lateral disturbances, a 45° canted arrangement provides balanced stiffness in all axes.

Bolt Torque: M8 Grade 8.8 fasteners torqued to 20–25 N·m. Use flat washers on both sides of the mounting bar to distribute clamp force evenly. Apply medium-strength thread locker for installations subject to sustained vibration.

Multi-Mount Setup: For equipment racks and enclosures, a symmetric 4-point or 6-point mounting pattern is recommended. The total equipment mass divided by the number of mounts should fall within the 2–55 kg range per isolator for optimal isolation performance.

Recommended Application Sectors

Mobile communication shelter equipment • Offshore platform control cabinets • Heavy industrial machinery operator stations • Generator and turbine packaging • Railway locomotive electronics • Mining haul truck monitoring systems • Broadcast and telecommunication relay shelters • Search and rescue vehicle payloads • Portable field hospital power units • Geophysical survey instrumentation • Marine engine room auxiliary equipment • Cold storage warehouse conveyor drives

We offer complimentary application engineering support including load-deflection characterization for your specific payload, multi-axis shaker table test reports, and custom mounting bar modifications. Contact our technical sales team to discuss your isolation requirements and request a sample for evaluation.
