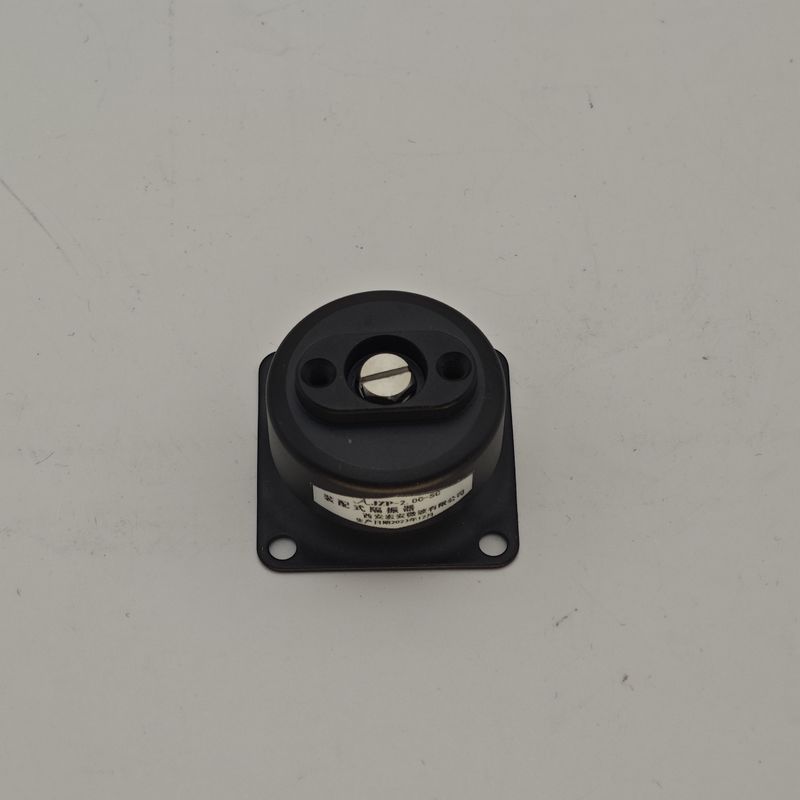

Name: JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.0B-SC
Availability: InStock

Do domu > produkty > gumowy amortyzator >

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

Hoan

Numer modelu:

JZP-3.0B-SC

Skontaktuj się z nami

Poproś o wycenę

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

Szczegóły produktu

Kształt:

Cylindryczny

Kolor:

Czarny

Maksymalne obciążenie statyczne:

3 kg

Częstotliwość wibracji:

5-50 Hz

Odporność na korozję:

Odporny na korozję

Typ mocowania:

Gwintowane

charakterystyczny:

szeroka częstotliwość pracy, długa żywotność

Raport z testów maszyn:

Niedostępne

Częstotliwość naturalna:

7Hz-15Hz

Łatwa instalacja:

Prosty i łatwy w instalacji

Tworzywo:

Guma

Funkcja:

Izolacja wibracji

Gwarancja:

1 rok

Redukcja wibracji:

Wysoki

Podkreślić:

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Warunki płatności i wysyłki

Minimalne zamówienie

Zasady płatności

L/C, D/A, D/P, T/T, Western Union, MoneyGram

ZAŁĄCZONE PRODUKTY

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Najlepszą cenę

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Najlepszą cenę

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Najlepszą cenę

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Najlepszą cenę

Skontaktuj się z nami

86-29-88292913

Skontaktuj się teraz

Opis produktu

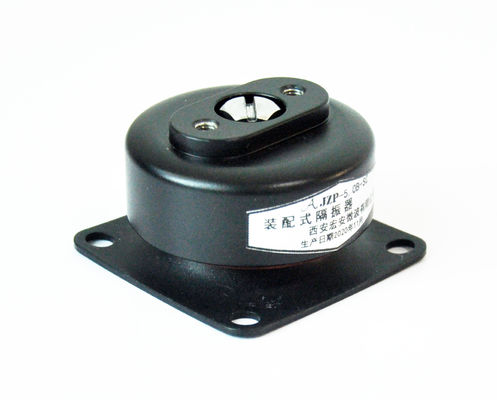

JZP-3.0B-SC Engineered for Extreme Conditions - The Best Rubber Shock Absorber for Military Mining Vehicles

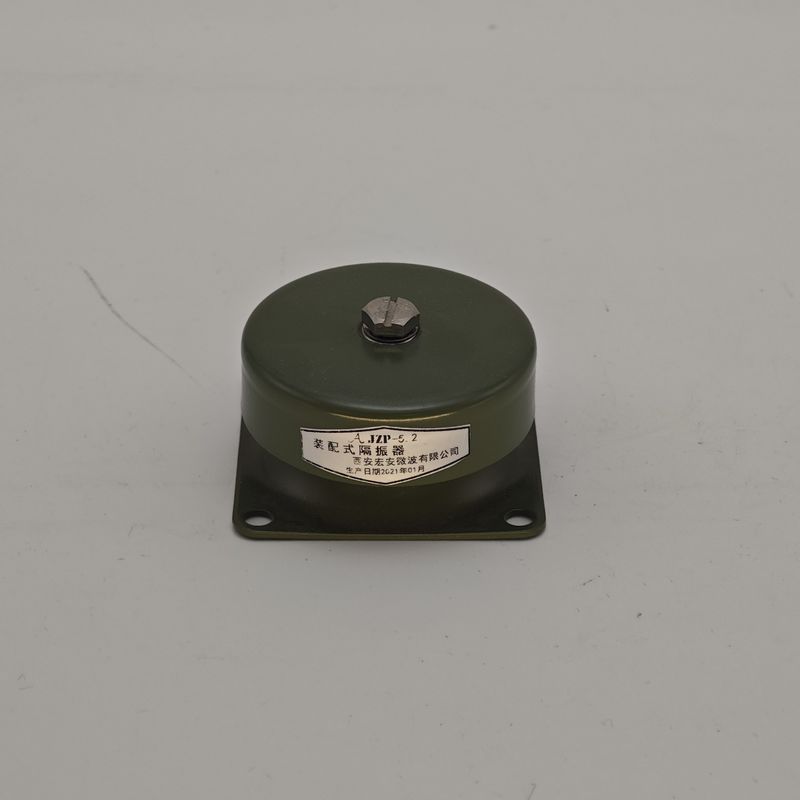

JZP-B-SC Series

Tenacious Protection, Fearless of Rough Terrain - The Outstanding Performance of Xi'an Hoan's JZP Series Under Severe Road Conditions

Not all vehicles travel on smooth highways. Military vehicles, emergency rescue vehicles, mining trucks, and geological exploration vehicles often operate in extreme conditions. Muddy roads, potholes, and gravel paths create high-intensity impacts that test equipment durability. The JZP Series On-Vehicle Modular Vibration Isolators are specifically engineered to protect equipment in these harsh environments.

Shock Isolation: Protection Beyond Conventional Vibration

Unlike steady vibration, shock is an instantaneous, high-energy excitation that can cause structural damage. The JZP Series is designed with shock isolation as a core performance feature. Its damping materials and structural design extend impact duration through large deformation, significantly reducing peak acceleration (G-force) transmitted to equipment. When a vehicle hits a deep pothole, the JZP Series acts like an "airbag" for the equipment, absorbing most damaging forces.

Durability and Environmental Adaptability

In harsh environments like sandstorms, rain, snow, and salt spray, vibration isolator durability is crucial. The JZP Series uses high-quality weather-resistant materials with advanced surface treatments (galvanizing and Dacromet coating) for excellent corrosion resistance and anti-aging properties. These isolators resist both mechanical stress and chemical/environmental erosion, offering a service life far exceeding ordinary products.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Performance

Vibration Performance Curve

Impact Performance Curve
