Name: GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-67A-A
Availability: InStock

Do domu > produkty > Izolacja wibracji z liny drutowej >

GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery

wire rope vibration isolator for machinery

industrial wire rope isolator GR6-67A-A

heavy-duty wire rope vibration dampener

Place of Origin:

China

Nazwa handlowa:

Hoan

Model Number:

GR6-67A-A

Dokument:

GR6 series Vibration Isolat...or.pdf

Skontaktuj się z nami

Poproś o wycenę

GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery

Szczegóły produktu

Resonant Frequency:

5-10HZ

Installation Orientation:

Vertical or Horizontal

Applicable Industries:

Building Material Shops, Energy & Mining

Shock Rsistance:

30g/11ms

Port:

Xi'an

Customization:

Available upon request

Max Static Load:

20-47N(2kg-4.8Kg)

Vibration Isolation Type:

Passive

Corrosion Resistance:

Yes

Working Temperature:

-55 ~ +120

Installation Method:

Horizontal or Vertical

Application:

Industrial Machinery

Podkreślić:

wire rope vibration isolator for machinery

industrial wire rope isolator GR6-67A-A

heavy-duty wire rope vibration dampener

Warunki płatności i wysyłki

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

ZAŁĄCZONE PRODUKTY

GR6-67A-A Wire Rope Vibration Isolator for Industrial Machinery

Najlepszą cenę

GR6-93A-A Steel Wire Rope Vibration Isolator for Industrial Machinery

Najlepszą cenę

GR6-142A-A Wire Rope Vibration Isolator for Industrial Engine Mounts

Najlepszą cenę

GR5-16A-A Wyizolowanie drutu stalowego od wibracji dla wibracji niskiej częstotliwości

Najlepszą cenę

Skontaktuj się z nami

86-29-88292913

Skontaktuj się teraz

Opis produktu

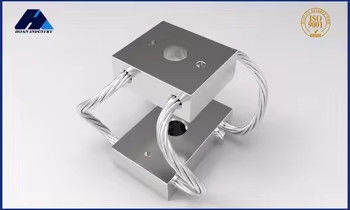

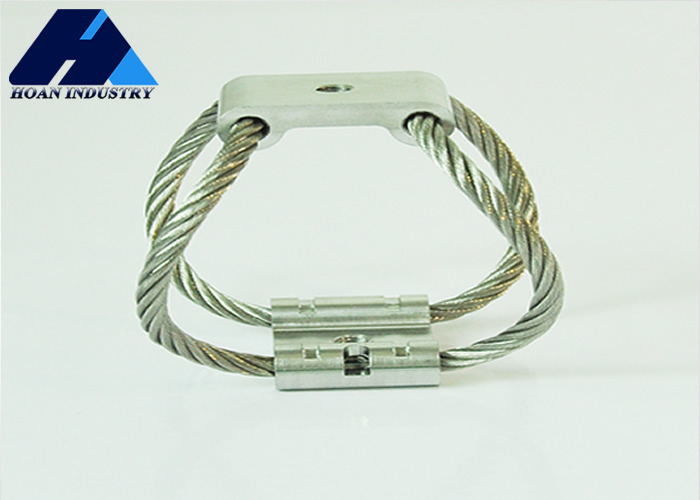

GR6-67A-A Wire Rope Vibration Isolators

High-performance vibration suppression solution for industrial machinery, effective against high-frequency mechanical vibrations from motors and pumps.

Product Specifications

Attribute	Value
Resonant Frequency	5-10HZ
Installation Orientation	Vertical or Horizontal
Applicable Industries	Building Material Shops, Energy & Mining
Shock Resistance	30g/11ms
Port	Xi'an
Customization	Available upon request
Max Static Load	20-47N(2kg-4.8Kg)
Vibration Isolation Type	Passive
Corrosion Resistance	Yes
Working Temperature	-55°C to +120°C
Application	Industrial Machinery

Product Features

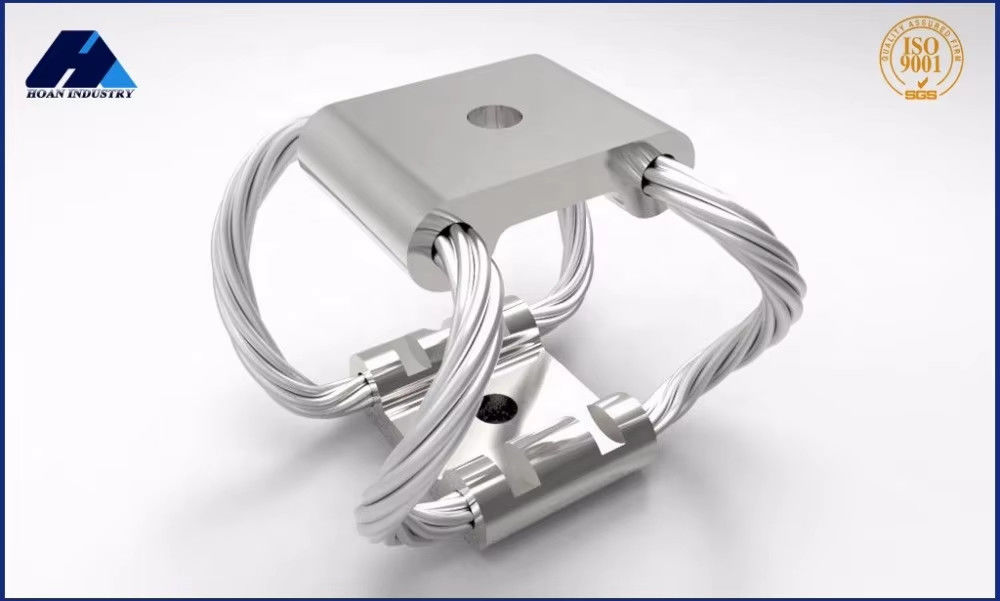

GR6 Series - Multi-directional Damping Technology

The GR6 series features an innovative three-dimensional spiral winding structure with multi-layer staggered steel wire ropes, providing composite vibration isolation in axial, radial, and torsional directions. Engineered through finite element analysis, this design offers 30% greater vibration isolation efficiency compared to conventional solutions.

Key advantages include:

Exceptional stability in complex swinging environments (15G impact resistance)
Modular design supports customized stiffness matching (5kg to 500kg load capacity)
Eliminates "rollover" issues common in traditional vibration isolators
Optimized for high-frequency vibration suppression in motors and pumps

Technical Specifications

Dimension Parameters

Model	Height (mm)	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR6-142A-A	47	54	0.91	A,B,C,D,E,S	∅7	M6*1.0	90
GR6-93A-A	55	59	0.99
GR6-67A-A	64	64	0.99
GR6-36A-A	79	73	0.99

Static-Load Performance

Material Options

Mounting splint material options:

Stainless Steel
Aluminum Alloy

Aluminum Alloy Surface Treatments

White Anodizing: Standard surface hardening treatment that maintains the natural aluminum color
Hard Anodizing: Enhanced surface hardening with darker finish, recommended for demanding applications

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a manufacturer with our own production facilities, ensuring full quality control and competitive pricing for customized solutions.

Can you customize products for us?

Yes, we offer customization services. Contact us with your requirements for tailored solutions.

What is the lead time?

Samples: 2-5 days. Production: 7-20 days (shorter if items are in stock).

Can I get samples before ordering?

Yes, sample orders are available.

Do you offer bulk order discounts?

Yes, we provide quantity-based discounts for bulk orders.

Customer Applications
