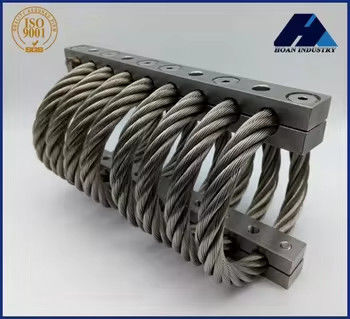

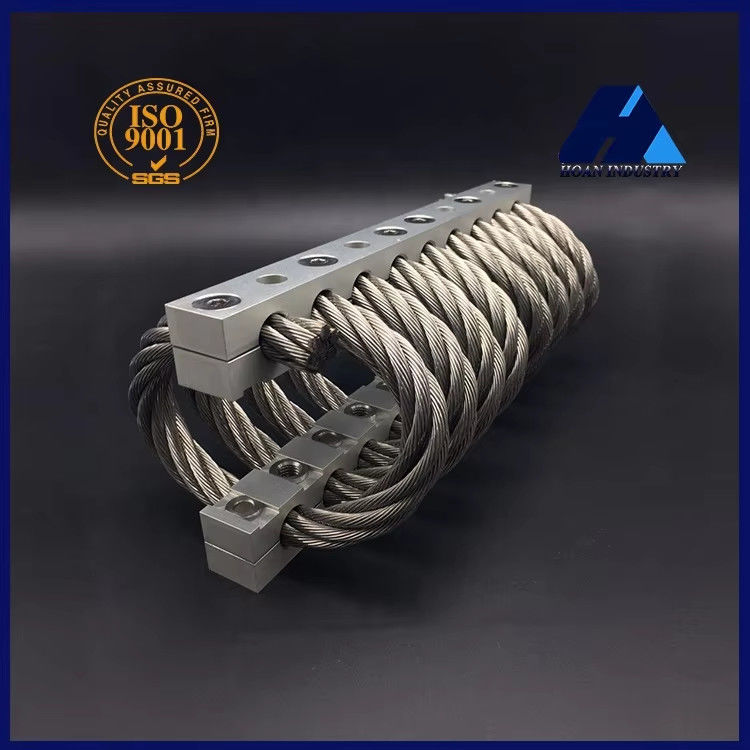

Name: JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0956A-40A
Availability: InStock

Do domu > produkty > Izolacja wibracji z liny drutowej >

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Place of Origin:

China

Nazwa handlowa:

Hoan

Orzecznictwo:

ISO9001:2015

Model Number:

JGX-0956A-40A

Skontaktuj się z nami

Poproś o wycenę

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Szczegóły produktu

Max Static Load:

20-47N(2kg-4.8Kg)

Structure:

Helical

After Warranty Service:

Online support

Accessories:

NEt

Flexible And Durable:

Yes

Wire Rope Material:

Galvanized Steel

Applications:

Marine and Industrial Engine Mounts

Function:

Return Air

Number Of Wires:

Showroom Location:

None

Resonant Frequency:

6 Hz

Shock Rsistance:

20g/11ms

Usage:

vacuum pump

Color:

Blackish Green and Silver Pai

Shock Absorption:

Yes

Warunki płatności i wysyłki

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

4，pience，7

ZAŁĄCZONE PRODUKTY

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements

Najlepszą cenę

JGX-0956A-72A Corrosion and Impact Resistant Wire Rope Vibration Isolator for Extreme Temperatures

Najlepszą cenę

JGX-0956A-75A Izolator drutowy węzła wibracji dla sprzętu lotniczego i wojskowego o nieliniowej sztywności

Najlepszą cenę

JGX-0956A-80A Izolator drutu drutowego z dostosowalną strukturą materiału i interfejsem

Najlepszą cenę

Skontaktuj się z nami

86-29-88292913

Skontaktuj się teraz

Opis produktu

JGX-0956A Series

The JGX-0956 series wire rope isolators have become a market focus due to their exceptional quality. Their innovative structure ingeniously combines the elastic deformation of wire ropes with dry friction damping, creating a highly efficient vibration energy dissipation system. The high-strength, flexible wire ropes, treated with specialized processes, not only exhibit outstanding fatigue resistance but also respond within milliseconds to suppress vibration transmission in complex working conditions, significantly improving vibration isolation efficiency.

In terms of quality control, this product series strictly adheres to internationally leading manufacturing standards. From raw material selection to final assembly, each production stage undergoes multiple precision inspection procedures to ensure consistent and reliable performance.

Additionally, backed by a professional technical team, we provide customized solutions tailored to clients' specific requirements, such as vibration spectra and load-bearing capacities. Whether for high-frequency precision instruments or heavy-duty industrial equipment, the exclusively designed isolators optimize both operational stability and service life, delivering solid protection for equipment maintenance across various industries.

Static-Load Curve

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements 0

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	110	34.0	275	135
2	JGX-0956A-104A	104	37.1	240	114
3	JGX-0956A-80A	80	40.1	180	84
4	JGX-0956A-75A	75	44.7	154	68
5	JGX-0956A-72A	72	49.8	137	60
6	JGX-0956A-40A	40	66.0	65	25
7	JGX-0956A-32A	32	68.1	51	19

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements 1

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	90.8	47.8	177	77
2	JGX-0956A-104A	84.0	51.8	156	67
3	JGX-0956A-80A	68.1	55.9	120	49
4	JGX-0956A-75A	63.6	63.0	103	40
5	JGX-0956A-72A	61.3	71.1	92	35
6	JGX-0956A-40A	34.8	91.9	44	16
7	JGX-0956A-32A	28.6	95.0	36	12

JGX-0956A-40A Vibration Isolator Customized Solutions for Specific Vibration and Load Requirements 2

No.	Model	Max Static Load (KG)	Max Deflection (mm)	KV(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	JGX-0956A-110A	70.3	36.1	98	98
2	JGX-0956A-104A	65.8	39.1	84	84
3	JGX-0956A-80A	49.9	42.2	58	58
4	JGX-0956A-75A	47.7	47.2	49	49
5	JGX-0956A-72A	45.4	52.8	44	44
6	JGX-0956A-40A	20.4	68.1	20	20
7	JGX-0956A-32A	15.9	71.1	15	15
